Rotary Dresser
Structure & Bonds
Dressing with rotating diamond tools has been found to be a reliable technique in batch and performance grinding processes. Especially for vitrified bond CBN grinding wheel’s high precision dressing.
Profile Rotary Dresser
|
Description |
Technology |
Code |
Diamond distribution |
|---|---|---|---|
|
Profile rotary dresser |
Sintered |
SD |
Hand Setting |
|
Randomness |
|||
|
Profile rotary dresser |
Electroplated |
ED |
Randomness |
|
Profile rotary dresser |
Reverse-plate |
RD |
Hand Setting |
|
Randomness |

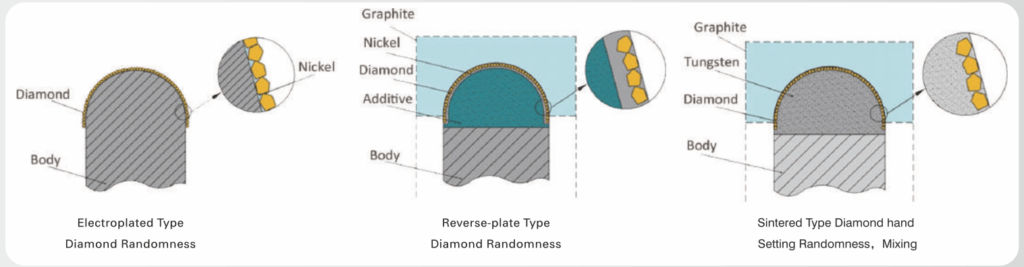

Type Of Profile Rotary Dresser
- Electroplated Type: Diamond Randomness
- Reverse-plate Type: Diamond Randomness
- Sintered Type: Diamond hand Setting Randomness, Mixing

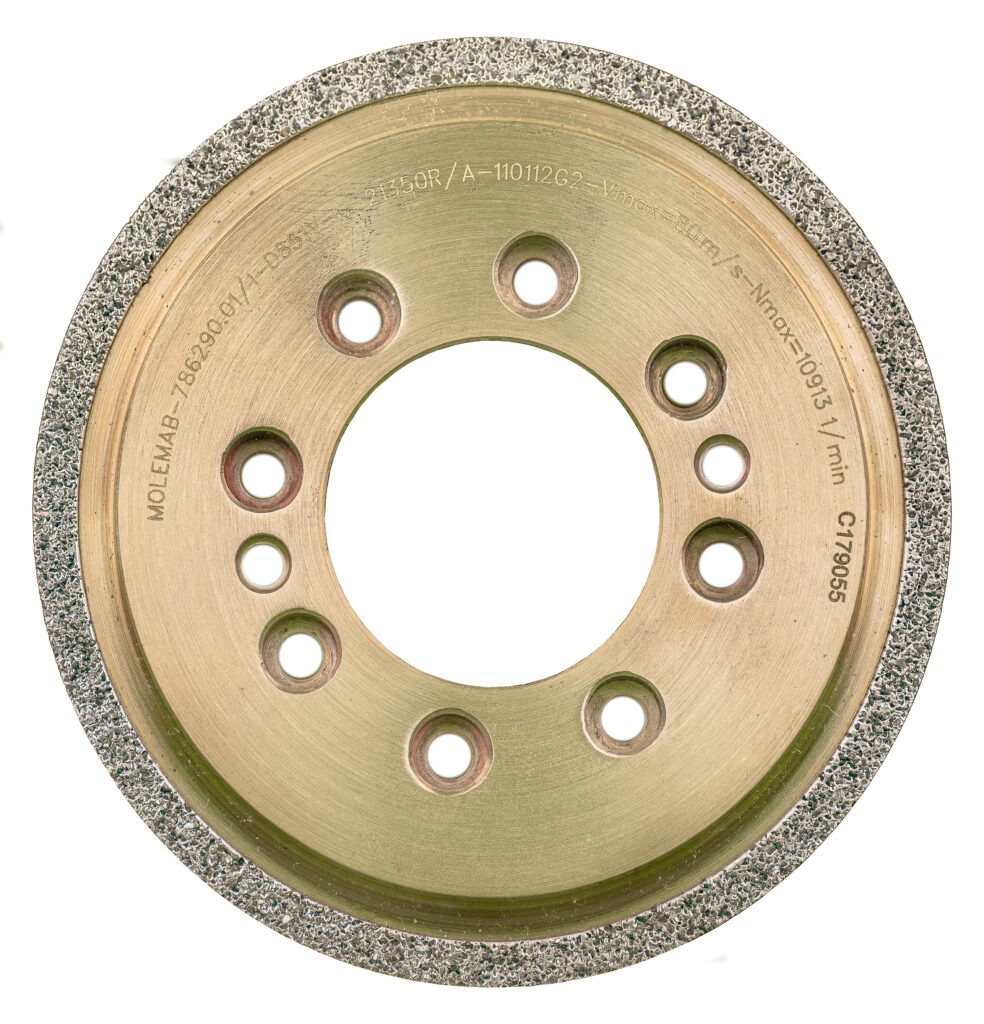

Diamond Rotary Dresser for Vitrified Bond CBN Wheels Dressing
The primary characteristics of vitrified CBN grinding wheel are high hardness, high thermal conductivity, high sharpness, resulting in high grinding efficiency. Suitable for high efficiency grinding of steel.
Typical Applications
- MR (CVD diamond / Tungsten)
- MS (Diamond / Tungsten)

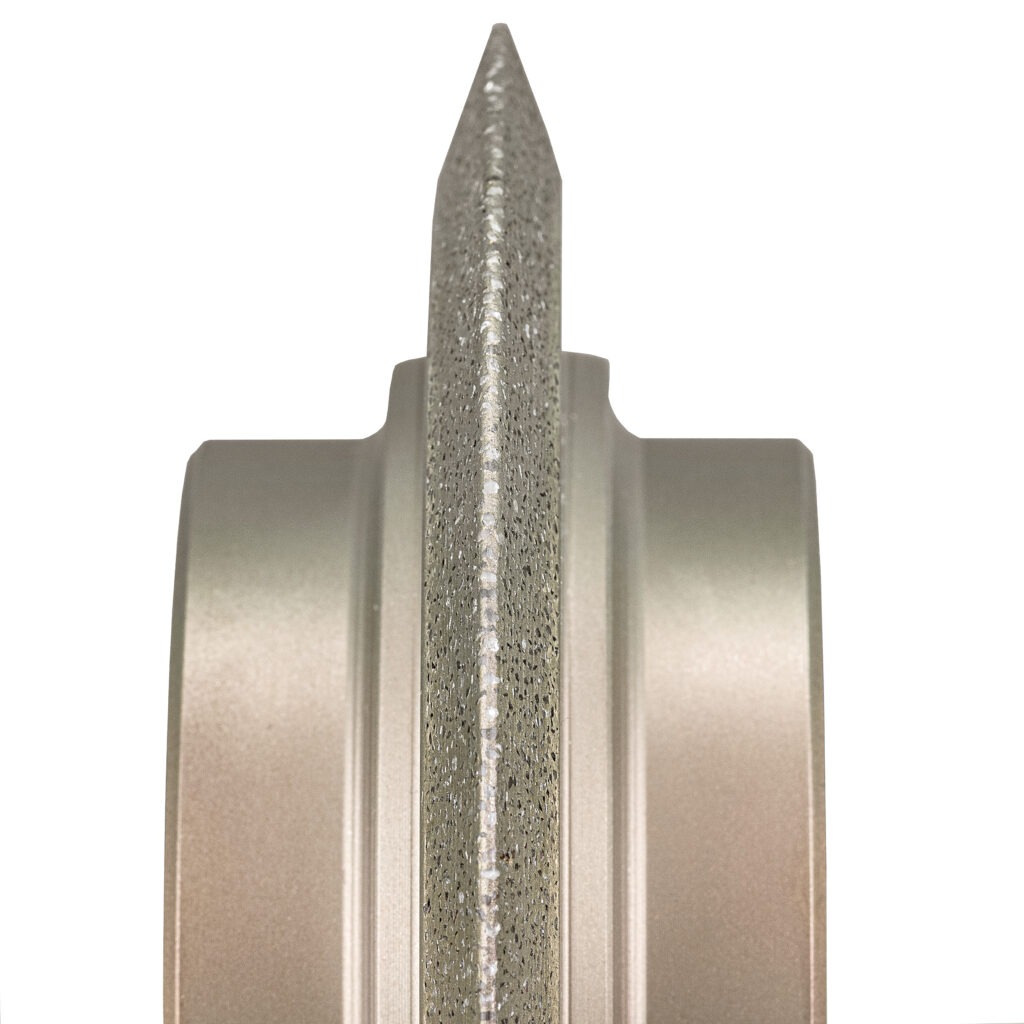

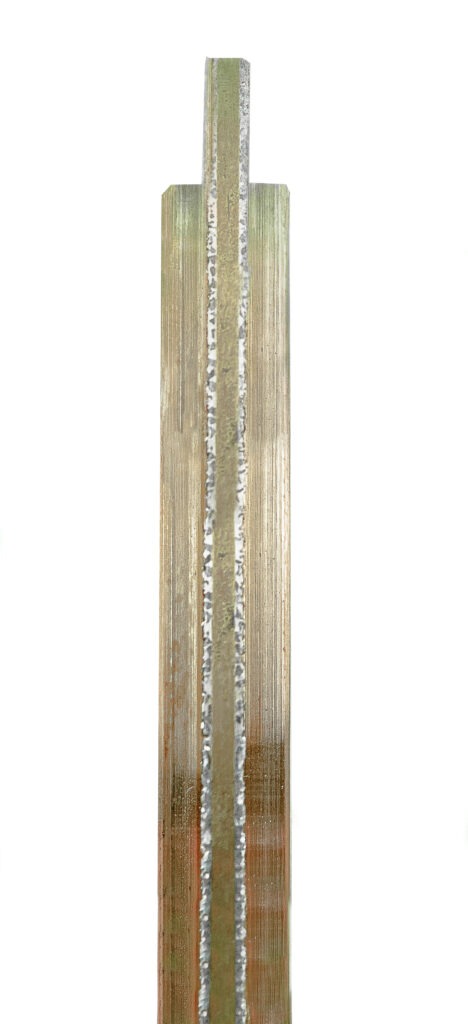

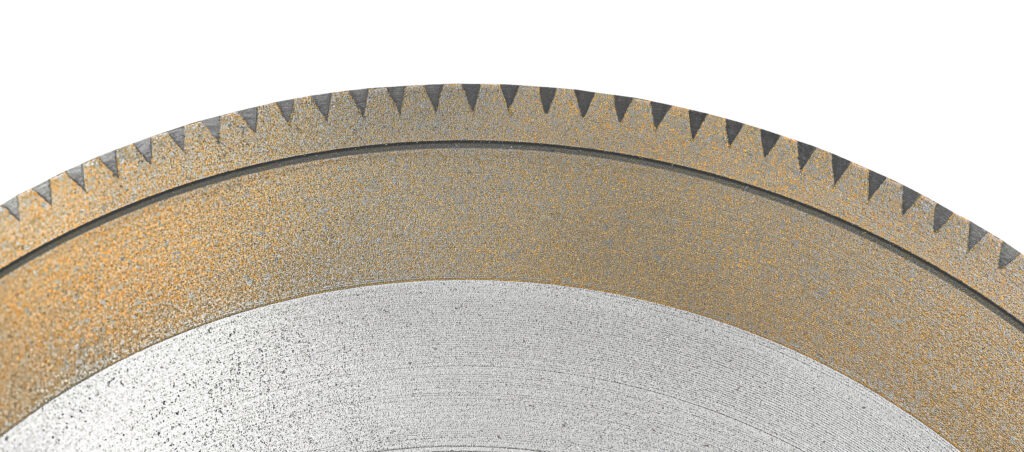

Dressing Disc
CNC dressing technique can be used in all fields of grinding production, especially for small and medium production lot sizes and for prototype applications. The profile of grinding wheel is created by CNC controlled process that moves rotating form roll along the target contour. Form rolls are therefore not restricted to a specific workpiece but can be used flexibly.
Type of Dressing Disc
- MR: CVD diamond / Tungsten
- MS: Diamond / Tungsten
- ME: Diamond / Nickel
